BCA Boring Bars - Integral Type
Integral Brazed Type BCA Finish Boring Bar
Specification Chart
All dimensions are in mm.
Fig No. Sr. No. Item Code Spindle Taper Cartridge
Item Code
D (Ømin - Ømax) Li GPL

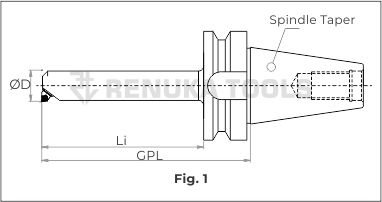

Fig 1

1

RT BCA IB 16-22.5 BT40

BT40

RTBC01BB (BRAZED)

16 - 22.5

73

105

2

RT BCA IB 19-23.0 BT40

BT40

RTBC01AB (BRAZED)

19 - 23.0

88

120

Specification Chart
All dimensions are in mm.
Fig No. Sr. No. Item Code Spindle Taper Cartridge
Item Code
Insert D (Ømin - Ømax) Li GPL

Fig 1

1

RT BCA IB 16-22.5 BT50

BT50

RTBC01BB (BRAZED)

16 - 22.5

77

120

2

RT BCA IB 19-23.0 BT50

BT50

RTBC01AB (BRAZED)

19 - 23.0

92

135

Notes
  •   All required spares and cartridges are supplied with the tools. If required additionally, can be ordered separately as well. Inserts not included.
  •   Lead time of 1-2 weeks for all options.
  •   Customized BCA boring bars for other spindle tapers / side lock type can also be provided but will be made to order with lead time of 3-6 weeks
  •   Customized BCA boring bars for special diameters can also be provided but will be made to order with lead time of 3-6 weeks.
  •   Diameter range ‘D’ calculated considering 0.4mm insert nose radius.
  •   For additional cutting length requirement, customized BCA boring bars with anti-vibration treatment can be tailor made with a lead time of 3-6 weeks.
  •   Maximum recommended material removal is 0.5mm diametrically.
Integral Type BCA Finish Boring Bar for TC.. Inserts - BT40
Specification Chart
All dimensions are in mm.
Fig No. Sr. No. Item Code Spindle Taper Cartridge
Item Code
Insert D (Ømin - Ømax) Li GPL

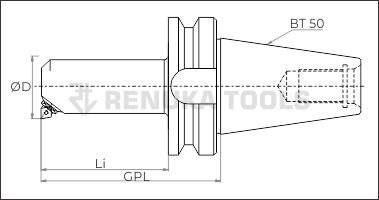

Fig 2

1

RT BCA IT 23-29 BT40

BT40

RTBC03BT

TC..06T1

23-29

103

135

2

RT BCA IT 29-41 BT40

BT40

RTBC03AT

TC..06T1

29-41

118

150

3

RT BCA IT 38-49 BT40

BT40

RTBC05BT

TC..1102

38-49

118

150

4

RT BCA IT 46-66 BT40

BT40

RTBC05AT

TC..1102

46-66

118

150

5

RT BCA IT 62-87 BT40

BT40

RTBC07AT

TC..1102

62-87

133

165

Fig 3

6

RT BCA IT 83-108 BT40

BT40

RTBC07AT

TC..16T3

83-108

133

165

7

RT BCA IT 98-142 BT40

BT40

RTBC10AT

TC..16T3

98-142

133

165

Notes
  •   All required spares and cartridges are supplied with the tools. If required additionally, can be ordered separately as well. Inserts not included.
  •   Lead time of 1-2 weeks for all options.
  •   Customized BCA boring bars for other spindle tapers / side lock type can also be provided but will be made to order with lead time of 3-6 weeks
  •   Customized BCA boring bars for special diameters can also be provided but will be made to order with lead time of 3-6 weeks.
  •   Diameter range ‘D’ calculated considering 0.4mm insert nose radius.
  •   For additional cutting length requirement, customized BCA boring bars with anti-vibration treatment can be tailor made with a lead time of 3-6 weeks.
  •   Maximum recommended material removal is 0.5mm diametrically.
  •   Please refer the table below these notes for the spare details.
Spare Details
Sr. No. Insert Insert Screw Torx

1

TC.. 0902

M2.2

T-6

2

TC.. 1102

M2.5

T-7

3

TC.. 16T3

M3.5

T-15

Integral Type BCA Finish Boring Bar for TC.. Inserts - BT50
Specification Chart
All dimensions are in mm.
Fig No. Sr. No. Item Code Spindle Taper Cartridge
Item Code
Insert D (Ømin - Ømax) Li GPL

Fig 2

1

RT BCA IT 23-29 BT50

BT50

RTBC03BT

TC..06T1

23-29

107

150

2

RT BCA IT 29-41 BT50

BT50

RTBC03AT

TC..06T1

29-41

122

165

3

RT BCA IT 38-49 BT50

BT50

RTBC05BT

TC..1102

38-49

122

165

4

RT BCA IT 46-66 BT50

BT50

RTBC05AT

TC..1102

46-66

122

165

5

RT BCA IT 62-87 BT50

BT50

RTBC07AT

TC..1102

62-87

137

180

Fig 3

6

RT BCA IT 83-108 BT50

BT50

RTBC07AT

TC..16T3

83-108

137

180

7

RT BCA IT 98-142 BT50

BT50

RTBC10AT

TC..16T3

98-142

137

180

8

RT BCA IT 132-176 BT50

BT 50

RTBC10AT

TC..16T3

132-176

167

210

Fig 4

9

RT BCA IT 166-210 BT50

BT 50

RTBC10AT

TC..16T3

166-210

182

225

10

RT BCA IT 200-244 BT50

BT 50

RTBC10AT

TC..16T3

200-244

167

210

Notes
  •   All required spares and cartridges are supplied with the tools. If required additionally, can be ordered separately as well. Inserts not included.
  •   Lead time of 1-2 weeks for all options.
  •   Customized BCA boring bars for other spindle tapers / side lock type can also be provided but will be made to order with lead time of 3-6 weeks
  •   Customized BCA boring bars for special diameters can also be provided but will be made to order with lead time of 3-6 weeks.
  •   Diameter range ‘D’ calculated considering 0.4mm insert nose radius.
  •   For additional cutting length requirement, customized BCA boring bars with anti-vibration treatment can be tailor made with a lead time of 3-6 weeks.
  •   Maximum recommended material removal is 0.5mm diametrically.
  •   Please refer the table below these notes for the spare details.
Spare Details
Sr. No. Insert Insert Screw Torx

1

TC.. 0902

M2.2

T-6

2

TC.. 1102

M2.5

T-7

3

TC.. 16T3

M3.5

T-15

Integral Type BCA Finish Boring Bar for CC.. Inserts - BT40
Specification Chart
All dimensions are in mm.
Fig No. Sr. No. Item Code Spindle Taper Cartridge
Item Code
Insert D (Ømin - Ømax) Li GPL

Fig 2

1

RT BCA IC 23-29 BT40

BT40

RTBC03BC

CC..0602

23-29

103

135

2

RT BCA IC 29-41 BT40

BT40

RTBC03AC

CC..0602

29-41

118

150

3

RT BCA IC 38-49 BT40

BT40

RTBC05BC

CC..0602

38-49

118

150

4

RT BCA IC 46-66 BT40

BT40

RTBC05AC

CC..0602

46-66

118

150

5

RT BCA IC 62-87 BT40

BT40

RTBC07AC

CC..09T3

62-87

133

165

Fig 3

6

RT BCA IC 83-108 BT40

BT40

RTBC07AC

CC..09T3

83-108

133

165

7

RT BCA IC 98-142 BT40

BT40

RTBC10AC

CC..09T3

98-142

133

165

Notes
  •   All required spares and cartridges are supplied with the tools. If required additionally, can be ordered separately as well. Inserts not included.
  •   Lead time of 1-2 weeks for all options.
  •   Customized BCA boring bars for other spindle tapers / side lock type can also be provided but will be made to order with lead time of 3-6 weeks
  •   Customized BCA boring bars for special diameters can also be provided but will be made to order with lead time of 3-6 weeks.
  •   Diameter range ‘D’ calculated considering 0.4mm insert nose radius.
  •   For additional cutting length requirement, customized BCA boring bars with anti-vibration treatment can be tailor made with a lead time of 3-6 weeks.
  •   Maximum recommended material removal is 0.5mm diametrically.
  •   Please refer the table below these notes for the spare details.
Spare Details
Sr. No. Insert Insert Screw Torx

1

CC.. 0602

M2.5

T-7

2

CC.. 09T3

M3.5

T-15

Integral Type BCA Finish Boring Bar for CC.. Inserts - BT50
Specification Chart
All dimensions are in mm.
Fig No. Sr. No. Item Code Spindle Taper Cartridge
Item Code
Insert D (Ømin - Ømax) Li GPL

Fig 2

1

RT BCA IC 23-29 BT50

BT50

RTBC03BC

CC..0602

23-29

107

150

2

RT BCA IC 29-41 BT50

BT50

RTBC03AC

CC..0602

29-41

122

165

3

RT BCA IC 38-49 BT50

BT50

RTBC05BC

CC..0602

38-49

122

165

4

RT BCA IC 46-66 BT50

BT50

RTBC05AC

CC..0602

46-66

122

165

5

RT BCA IC 62-87 BT50

BT50

RTBC07AC

CC..09T3

62-87

137

180

Fig 3

6

RT BCA IC 83-108 BT50

BT50

RTBC07AC

CC..09T3

83-108

137

180

7

RT BCA IC 98-142 BT50

BT50

RTBC10AC

CC..09T3

98-142

137

180

8

RT BCA IC 132-176 BT50

BT 50

RTBC10AC

CC..09T3

132-176

167

210

Fig 4

9

RT BCA IC 166-210 BT50

BT 50

RTBC10AC

CC..09T3

166-210

182

225

10

RT BCA IC 200-244 BT50

BT 50

RTBC10AC

CC..09T3

200-244

167

210

Notes
  •   All required spares and cartridges are supplied with the tools. If required additionally, can be ordered separately as well. Inserts not included.
  •   Lead time of 1-2 weeks for all options.
  •   Customized BCA boring bars for other spindle tapers / side lock type can also be provided but will be made to order with lead time of 3-6 weeks
  •   Customized BCA boring bars for special diameters can also be provided but will be made to order with lead time of 3-6 weeks.
  •   Diameter range ‘D’ calculated considering 0.4mm insert nose radius.
  •   For additional cutting length requirement, customized BCA boring bars with anti-vibration treatment can be tailor made with a lead time of 3-6 weeks.
  •   Maximum recommended material removal is 0.5mm diametrically.
  •   Please refer the table below these notes for the spare details.
Spare Details
Sr. No. Insert Insert Screw Torx

1

CC.. 0602

M2.5

T-7

2

CC.. 09T3

M3.5

T-15
