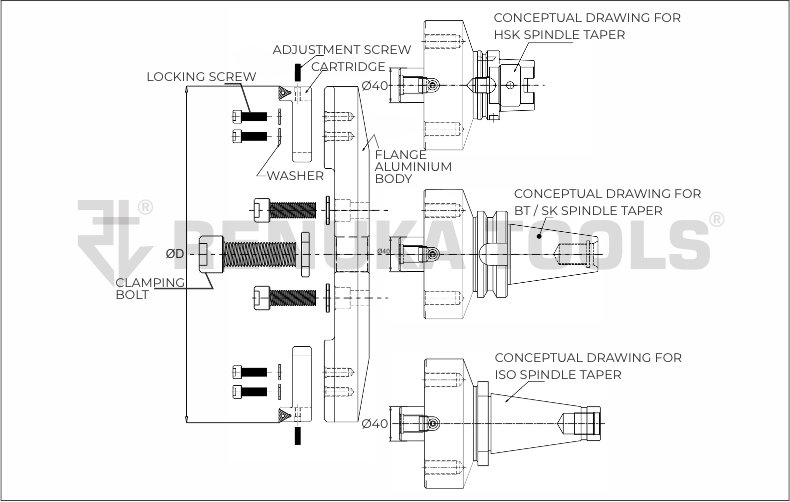

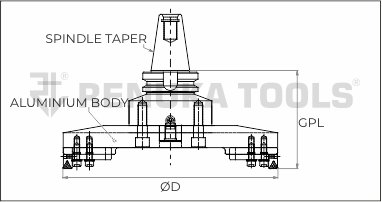

All dimensions are in mm.

Sr. No	Item Code	Flange Item Code	Adaptor Item Code	D Ømin - Ømax	D1	D2	GPL	Total Tool Wt. in KG
1	RT DUO FT 200-250 BT 40	F 200-250	ADPF BT40088	200-250	40	88	167	6.7
2	RT DUO FT 200-250 BT 50	F 200-250	ADPF BT50102	200-250	40	102	178	10.7
3	RT DUO FT 250-300 BT 40	F 250-300	ADPF BT40088	250-300	40	88	167	7.3
4	RT DUO FT 250-300 BT 50	F 250-300	ADPF BT50102	250-300	40	102	178	11.3
5	RT DUO FT 300-350 BT 40	F 300-350	ADPF BT40088	300-350	40	88	167	7.8
6	RT DUO FT 300-350 BT 50	F 300-350	ADPF BT50102	300-350	40	102	178	11.8
7	RT DUO FT 350-400 BT 50	F 350-400	ADPF BT50117	350-400	40	117	178	12.5
8	RT DUO FT 400-450 BT 50	F 400-450	ADPF BT50117	400-450	40	117	178	13.1
9	RT DUO FT 450-500 BT 50	F 450-500	ADPF BT50117	450-500	40	117	178	13.8

Suitable Inserts for all the above models are TC..16T3.
Cartridge part number for all above models is CART DUO FT (2nos. in each tool).
Working length for all the above tools is 140mm.
Material used for Flange is Aluminium for weight reduction.
All required spares are supplied with the tools. If required, can be ordered separately as well. Inserts not included.
Lead time of 2-3 weeks for all options.
Diameter range “D” calculated considering 0.8mm insert nose radius.
For additional cutting length requirement, customized boring bars with anti-vibration treatment can be tailor made with lead time of 3-6 weeks.
Please refer the tables below these notes for the cartridge details and spare details.

Sr. No.	Cartridge Item Code	Insert	Screw	Torx
1	CART DUO FT	TC.. 16T3	M3.5	T-15

Sr. No.	Insert	Insert Screw	Torx
1	TC..16T3	M3.5	T-15

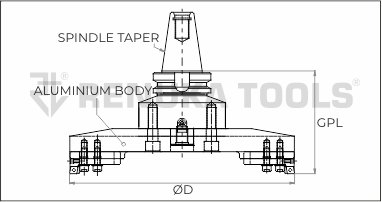

All dimensions are in mm.

Sr. No	Item Code	Flange Item Code	Adaptor Item Code	D Ømin - Ømax	D1	D2	GPL	Total Tool Wt. in KG
1	RT DUO FC 200-250 BT 40	F 200-250	ADPF BT40088	200-250	40	88	167	6.7
2	RT DUO FC 200-250 BT 50	F 200-250	ADPF BT50102	200-250	40	102	178	10.7
3	RT DUO FC 250-300 BT 40	F 250-300	ADPF BT40088	250-300	40	88	167	7.3
4	RT DUO FC 250-300 BT 50	F 250-300	ADPF BT50102	250-300	40	102	178	11.3
5	RT DUO FC 300-350 BT 40	F 300-350	ADPF BT40088	300-350	40	88	167	7.8
6	RT DUO FC 300-350 BT 50	F 300-350	ADPF BT50102	300-350	40	102	178	11.8
7	RT DUO FC 350-400 BT 50	F 350-400	ADPF BT50117	350-400	40	117	178	12.5
8	RT DUO FC 400-450 BT 50	F 400-450	ADPF BT50117	400-450	40	117	178	13.1
9	RT DUO FC 450-500 BT 50	F 450-500	ADPF BT50117	450-500	40	117	178	13.8

Suitable Inserts for all the above models are CC..1204.
Cartridge part number for all the above mentioned models is CART DUO FC (2nos. in each tool).
Working length for all the above tools is 140mm.
Material used for Flange is Aluminium for weight reduction.
All required spares are supplied with the tools. If required, can be ordered separately as well. Inserts not included.
Lead time of 2-3 weeks for all options.
Diameter range “D” calculated considering 0.8mm insert nose radius.
For additional cutting length requirement, customized boring bars with anti-vibration treatment can be tailor made with lead time of 3-6 weeks.
Please refer the tables below these notes for the cartridge details and spare details.

Sr. No.	Cartridge Item Code	Insert	Screw	Torx
1	CART DUO FT	CC.. 1204	M4.5	T-20

Sr. No.	Insert	Insert Screw	Torx
1	CC..1204	M4.5	T-20

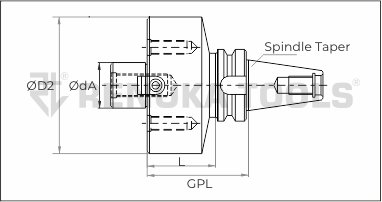

All dimensions are in mm.

Sr. no.	Adaptor Item Code	Spindle Taper	Adaptor OD dA	D2	L	GPL of Adaptor	Wt. in KG
1	ADPF BT40088	BT 40	40	88	60	89	3.0
2	ADPF BT50102	BT 50	40	102	60	100	6.9
3	ADPF BT50117	BT 50	40	117	60	100	7.1

Customized adaptors of any spindle taper can also be provided but will be made to order with lead time of 3-6 weeks
