Standard Products
Duo Boring Bars - Integral Type

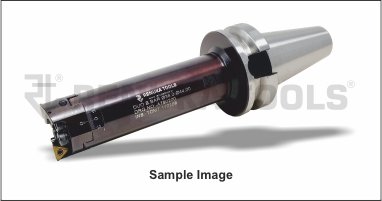

Integral Type Duo Boring Bar For TC.. Inserts - BT40
include/img/DUO_Integral/Integral Type Duo Boring Bar - TC-BT40/Big 1.jpg
include/img/DUO_Integral/Integral Type Duo Boring Bar - TC-BT40/Big 2.jpg
include/img/DUO_Integral/Integral Type Duo Boring Bar - TC-BT40/Big 3.jpg
include/img/DUO_Integral/Integral Type Duo Boring Bar - TC-BT40/Big 4.jpg
include/img/DUO_Integral/Integral Type Duo Boring Bar - TC-BT40/Big 5.jpg
include/img/DUO_Integral/Integral Type Duo Boring Bar - TC-BT40/Big 6.jpg
Specification Chart
All dimensions are in mm.
Fig. No. Sr. No. Item Code Holding Taper Cartridge Item Code Insert D (Ømin - Ømax) Li GPL

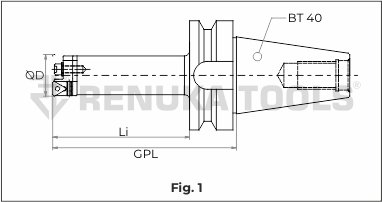

Fig 1

1

RT DUO IT 20-24 BT40

BT40

CART DUO T 20-24

TC..0902

20-24

80

107

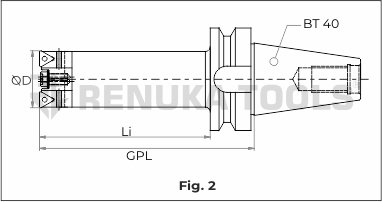

Fig 2

2

RT DUO IT 24-30 BT40

BT40

CART DUO T 24-30

TC..0902

24-30

80

107

3

RT DUO IT 29-36 BT40

BT40

CART DUO T 29-36

TC..1102

29-36

87

114

4

RT DUO IT 36-44 BT40

BT40

CART DUO T 36-44

TC..1102

36-44

108

135

5

RT DUO IT 43-54 BT40

BT40

CART DUO T 43-54

TC..1102

43-54

115

142

Fig 3

6

RT DUO IT 53-66 BT40

BT40

CART DUO T 53-66

TC..1102

53-66

120

147

7

RT DUO IT 65-83 BT40

BT40

CART DUO T 65-83

TC..16T3

65-83

155

182

Fig 4

8

RT DUO IT 82-103 BT40

BT40

CART DUO T 82-103

TC..16T3

82-103

206

233

9

RT DUO IT 100-130 BT40

BT40

CART DUO T 100-130

TC..16T3

100-130

210

237

10

RT DUO IT 125-155 BT40

BT40

CART DUO T 125-155

TC..16T3

125-155

273

300

11

RT DUO IT 150-205 BT40

BT40

CART DUO T 150-205

TC..16T3

150-205

273

300
Notes
  •   For range 20-24, boring bar has one single cartridge only. For others, there are two cartridges.
  •  All required spares are supplied with the tools. If required additionally, can be ordered separately as well. Inserts not included.
  •   Lead time of 1-2 weeks for all options.
  •   Customized boring bars for special diameters can also be provided but will be made to order with lead time of 3-6 weeks.
  •   Customized boring bars for other spindle tapers can also be provided but will be made to order with lead time of 3-6 weeks.
  •   Diameter range “D” calculated considering 0.8mm insert nose radius.
  •   For additional cutting length requirement, customized boring bars with anti-vibration treatment can be tailor made with lead time of 3-6 weeks.
  •   Please refer the table below these notes for the spare details.
Spare Details
Sr. No.. Insert Insert Screw Torx

1

TC.. 0902

M2.2

T-6

2

TC..1102

M2.5

T-7

3

TC..16T3

M3.5

T-15
Integral Type Duo Boring Bar For TC.. Inserts - BT50

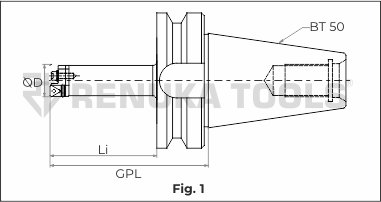

include/img/DUO_Integral/Integral Type Duo Boring Bar - TC-BT50/Big 1.jpg
include/img/DUO_Integral/Integral Type Duo Boring Bar - TC-BT50/Big 2.jpg
include/img/DUO_Integral/Integral Type Duo Boring Bar - TC-BT50/Big 3.jpg
include/img/DUO_Integral/Integral Type Duo Boring Bar - TC-BT50/Big 4.jpg
include/img/DUO_Integral/Integral Type Duo Boring Bar - TC-BT50/Big 5.jpg
include/img/DUO_Integral/Integral Type Duo Boring Bar - TC-BT50/Big 6.jpg
Specification Chart
All dimensions are in mm.
Fig. No. Sr. No. Item Code Holding Taper Cartridge Item Code Insert D (Ømin - Ømax) Li GPL

Fig 1

1

RT DUO IT 20-24 BT50

BT50

CART DUO T 20-24

TC..0902

20-24

80

118

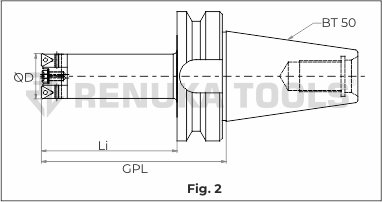

Fig 2

2

RT DUO IT 24-30 BT50

BT50

CART DUO T 24-30

TC..0902

24-30

80

118

3

RT DUO IT 29-36 BT50

BT50

CART DUO T 29-36

TC..1102

29-36

87

138

4

RT DUO IT 36-44 BT50

BT50

CART DUO T 36-44

TC..1102

36-44

108

146

5

RT DUO IT 43-54 BT50

BT50

CART DUO T 43-54

TC..1102

43-54

115

153

Fig 3

6

RT DUO IT 53-66 BT50

BT50

CART DUO T 53-66

TC..1102

53-66

120

158

7

RT DUO IT 65-83 BT50

BT50

CART DUO T 65-83

TC..16T3

65-83

155

193

Fig 4

8

RT DUO IT 82-103 BT50

BT50

CART DUO T 82-103

TC..16T3

82-103

206

244

9

RT DUO IT 100-130 BT50

BT50

CART DUO T 100-130

TC..16T3

100-130

210

248

10

RT DUO IT 125-155 BT50

BT50

CART DUO T 125-155

TC..16T3

125-155

273

311

11

RT DUO IT 150-205 BT50

BT50

CART DUO T 150-205

TC..16T3

150-205

273

311
Notes
  •   For range 20-24, boring bar has one single cartridge only. For others, there are two cartridges.
  •  All required spares are supplied with the tools. If required additionally, can be ordered separately as well. Inserts not included.
  •   Lead time of 1-2 weeks for all options.
  •   Customized boring bars for special diameters can also be provided but will be made to order with lead time of 3-6 weeks.
  •   Customized boring bars for other spindle tapers can also be provided but will be made to order with lead time of 3-6 weeks.
  •   Diameter range “D” calculated considering 0.8mm insert nose radius.
  •   For additional cutting length requirement, customized boring bars with anti-vibration treatment can be tailor made with lead time of 3-6 weeks.
  •   Please refer the table below these notes for the spare details.
Spare Details
Sr. No.. Insert Insert Screw Torx

1

TC.. 0902

M2.2

T-6

2

TC..1102

M2.5

T-7

3

TC..16T3

M3.5

T-15
Integral Type Duo Boring Bar For CC.. Inserts - BT40
include/img/DUO_Integral/Integral Type Duo Boring Bar - CC-BT40/Big 1.jpg
include/img/DUO_Integral/Integral Type Duo Boring Bar - CC-BT40/Big 2.jpg
include/img/DUO_Integral/Integral Type Duo Boring Bar - CC-BT40/Big 3.jpg
include/img/DUO_Integral/Integral Type Duo Boring Bar - CC-BT40/Big 4.jpg
include/img/DUO_Integral/Integral Type Duo Boring Bar - CC-BT40/Big 5.jpg
include/img/DUO_Integral/Integral Type Duo Boring Bar - CC-BT40/Big 6.jpg
Specification Chart
All dimensions are in mm.
Fig. No. Sr. No. Item Code Holding Taper Cartridge Item Code Insert D (Ømin - Ømax) Li GPL

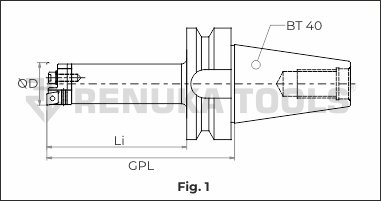

Fig 1

1

RT DUO IC 20-24 BT40

BT40

CART DUO C 20-24

CC..0602

20-24

80

107

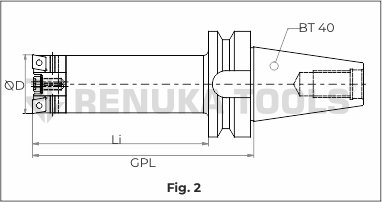

Fig 2

2

RT DUO IC 24-30 BT40

BT40

CART DUO C 24-30

CC..0602

24-30

80

107

3

RT DUO IC 29-36 BT40

BT40

CART DUO C 29-36

CC..0602

29-36

87

114

4

RT DUO IC 36-44 BT40

BT40

CART DUO C 36-44

CC..0602

36-44

108

135

5

RT DUO IC 43-54 BT40

BT40

CART DUO C 43-54

CC..09T3

43-54

115

142

Fig 3

6

RT DUO IC 53-66 BT40

BT40

CART DUO C 53-66

CC..09T3

53-66

120

147

7

RT DUO IC 65-83 BT40

BT40

CART DUO C 65-83

CC..09T3

65-83

155

182

Fig 4

8

RT DUO IC 82-103 BT40

BT40

CART DUO C 82-103

CC..09T3

82-103

206

233

9

RT DUO IC 100-130 BT40

BT40

CART DUO C 100-130

CC..09T3

100-130

210

237

10

RT DUO IC 125-155 BT40

BT40

CART DUO C 125-155

CC..1204

125-155

273

300

11

RT DUO IC 150-205 BT40

BT40

CART DUO C 150-205

CC..1204

150-205

273

300
Notes
  •   For range 20-24, boring bar has one single cartridge only. For others, there are two cartridges.
  •  All required spares are supplied with the tools. If required additionally, can be ordered separately as well. Inserts not included.
  •   Lead time of 1-2 weeks for all options.
  •   Customized boring bars for special diameters can also be provided but will be made to order with lead time of 3-6 weeks.
  •   Customized boring bars for other spindle tapers can also be provided but will be made to order with lead time of 3-6 weeks.
  •   Diameter range “D” calculated considering 0.8mm insert nose radius.
  •   For additional cutting length requirement, customized boring bars with anti-vibration treatment can be tailor made with lead time of 3-6 weeks.
  •   Please refer the table below these notes for the spare details.
Spare Details
Sr. No.. Insert Insert Screw Torx

1

CC..0602

M2.5

T-7

2

CC..09T3

M3.5

T-7

3

CC..1204

M4.5

T-20
Integral Type Duo Boring Bar For CC.. Inserts - BT50
include/img/DUO_Integral/Integral Type Duo Boring Bar - CC-BT50/Big 1.jpg
include/img/DUO_Integral/Integral Type Duo Boring Bar - CC-BT50/Big 2.jpg
include/img/DUO_Integral/Integral Type Duo Boring Bar - CC-BT50/Big 3.jpg
include/img/DUO_Integral/Integral Type Duo Boring Bar - CC-BT50/Big 4.jpg
include/img/DUO_Integral/Integral Type Duo Boring Bar - CC-BT50/Big 5.jpg
include/img/DUO_Integral/Integral Type Duo Boring Bar - CC-BT50/Big 6.jpg
Specification Chart
All dimensions are in mm.
Fig. No. Sr. No. Item Code Holding Taper Cartridge Item Code Insert D (Ømin - Ømax) Li GPL

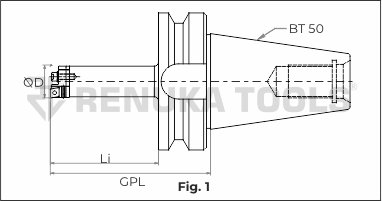

Fig 1

1

RT DUO IC 20-24 BT50

BT50

CART DUO C 20-24

CC..0602

20-24

80

118

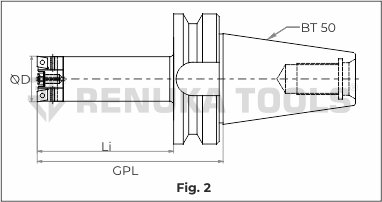

Fig 2

2

RT DUO IC 24-30 BT50

BT50

CART DUO C 24-30

CC..0602

24-30

80

118

3

RT DUO IC 29-36 BT50

BT50

CART DUO C 29-36

CC..0602

29-36

87

138

4

RT DUO IC 36-44 BT50

BT50

CART DUO C 36-44

CC..0602

36-44

108

146

5

RT DUO IC 43-54 BT50

BT50

CART DUO C 43-54

CC..09T3

43-54

115

153

Fig 3

6

RT DUO IC 53-66 BT50

BT50

CART DUO C 53-66

CC..09T3

53-66

120

158

7

RT DUO IC 65-83 BT50

BT50

CART DUO C 65-83

CC..09T3

65-83

155

193

Fig 4

8

RT DUO IC 82-103 BT50

BT50

CART DUO C 82-103

CC..09T3

82-103

206

244

9

RT DUO IC 100-130 BT50

BT50

CART DUO C 100-130

CC..09T3

100-130

210

248

10

RT DUO IC 125-155 BT50

BT50

CART DUO C 125-155

CC..1204

125-155

273

311

11

RT DUO IC 150-205 BT50

BT50

CART DUO C 150-205

CC..1204

150-205

273

311
Notes
  •   For range 20-24, boring bar has one single cartridge only. For others, there are two cartridges.
  •  All required spares are supplied with the tools. If required additionally, can be ordered separately as well. Inserts not included.
  •   Lead time of 1-2 weeks for all options.
  •   Customized boring bars for special diameters can also be provided but will be made to order with lead time of 3-6 weeks.
  •   Customized boring bars for other spindle tapers can also be provided but will be made to order with lead time of 3-6 weeks.
  •   Diameter range “D” calculated considering 0.8mm insert nose radius.
  •   For additional cutting length requirement, customized boring bars with anti-vibration treatment can be tailor made with lead time of 3-6 weeks.
  •   Please refer the table below these notes for the spare details.
Spare Details
Sr. No.. Insert Insert Screw Torx

1

CC..0602

M2.5

T-7

2

CC..09T3

M3.5

T-7

3

CC..1204

M4.5

T-20
