Duo Boring Bars - Side Lock Type

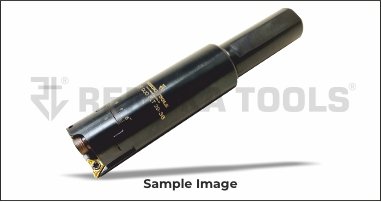

Side lock Type Duo Boring Bar For TC..Inserts
Specification Chart
All dimensions are in mm.
Fig. No. Sr. No. Item Code Cartridge Item Code Insert ØD Range Ød L Working Length Wt. in KG

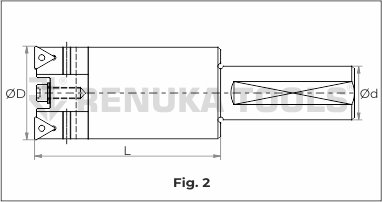

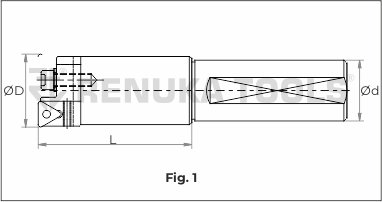

Fig. 1 1 RT DUO SLT 20-24 CART DUO T 20-24 TC..0902 20-24 20 80 0.4

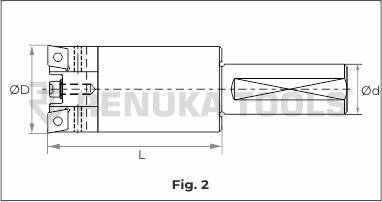

Fig. 2 2 RT DUO SLT 24-30 CART DUO T 24-30 TC..0902 24-30 25 80 0.6
3 RT DUO SLT 29-36 CART DUO T 29-36 TC..1102 29-36 25 80 0.7
4 RT DUO SLT 36-44 CART DUO T 36-44 TC..1102 36-44 32 80 1.1
5 RT DUO SLT 43-54 CART DUO T 43-54 TC..1102 43-54 32 80 1.3
Notes
  •   For all the above boring bars, any standard Side-Lock adaptor can be used with diameter equal to “Ød” mentioned above.
  •   For Range 20-24, boring bar has one single cartridge only. For rest all, there are two cartridges.
  •  All required spares are supplied with the tools. If required additionally, can be ordered separately as well. Inserts not included.
  •   Lead time of 1-2 weeks for all options.
  •   Diameter range “D” calculated considering 0.8mm insert nose radius.
  •   Please refer the table below these notes for the spare details.
Spare Details
Sr. No. Insert Insert Screw Torx

1

TC.. 0902

M2.2

T-6

2

TC..1102

M2.5

T-7

3

TC..16T3

M3.5

T-15

Side lock Type Duo Boring Bar For CC..Inserts
Specification Chart
All dimensions are in mm.
Fig. No. Sr. No. Item Code Cartridge Item Code Insert ØD Range Ød L Working Length Wt. in KG

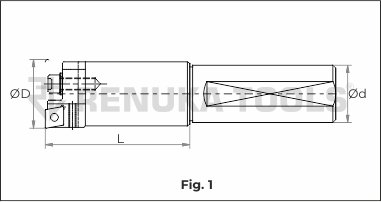

Fig. 1 1 RT DUO SLC 20‑24 CART DUO C 20‑24 CC..0602 20‑24 20 80 0.4
Fig. 2 2 RT DUO SLC 24‑30 CART DUO C 24‑30 CC..0602 24‑30 25 80 0.6
3 RT DUO SLC 29‑36 CART DUO C 29‑36 CC..0602 29‑36 25 80 0.7
4 RT DUO SLC 36‑44 CART DUO C 36‑44 CC..0602 36‑44 32 80 1.1
5 RT DUO SLC 43‑54 CART DUO C 43‑54 CC..09T3 43‑54 32 80 1.3
Notes
  •   For all the above boring bars, any standard Side-Lock adaptor can be used with diameter equal to “Ød” mentioned above.
  •   For Range 20-24, boring bar has one single cartridge only. For rest all, there are two cartridges.
  •  All required spares are supplied with the tools. If required additionally, can be ordered separately as well. Inserts not included.
  •   Lead time of 1-2 weeks for all options.
  •   Diameter range “D” calculated considering 0.8mm insert nose radius.
  •   Please refer the table below these notes for the spare details.
Spare Details
Sr. No. Insert Insert Screw Torx

1

CC..0602

M2.5

T-7

2

CC..09T3

M3.5

T-15

3

CC..1204

M4.5

T-20
